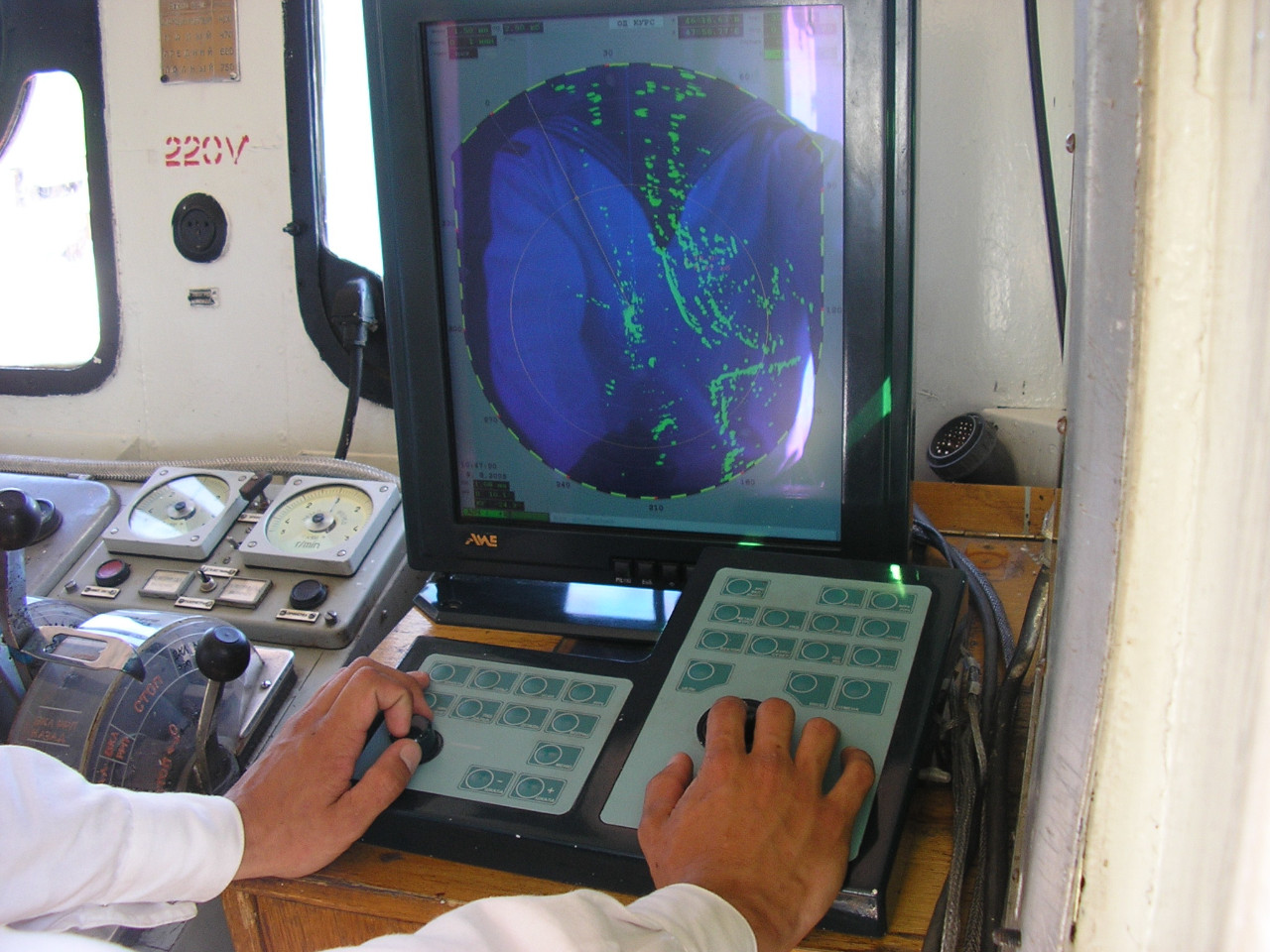

Navigation Radar station «IRTYSH-2RM»

Navigation Radar station «IRTYSH-2RM»

Navigation radar system «IRTYSH-2RM» is intended to improve the safety of river vessels of mixed (river-sea) navigation with a gross capacity 1600- 10000 registered tons in river and sea areas, reservoirs, channels and narrow areas with limited visibility.

Functional performances:

  • computer processing of the radar signal;
  • display of the radar situation and additional information on a flat-panel color display with high resolution and contrast;
  • range and direction measurement with electronic sighting devices with digital information display;
  • relative and true motion modes;
  • image stabilization modes relative to water and relative to the ground;
  • image orientation according to course or north direction;
  • wide range selection in kilometers and miles;
  • vector has optional range-finding ring for navigation direction;
  • set up of parallel navigation lines;
  • offset of radar image center in any direction;
  • offset of center of moving range ring and beginning of direction sight;
  • availability of at least 50 targets with indication of movement parameters of a target selected by operator;
  • setting available value of closing distance, red light signaling of «dangerous» targets;
  • effective jamming protection against waves, atmospheric precipitation and non-synchronous pulse interference;
  • cross-sight accumulation of radar signals;
  • target trace display with adjustable duration;
  • pairing with gyrocompass and lag via digital or analog channels;
  • pairing with AIS;
  • pairing with the GLONASS/GPS receiver;
  • the system of monitoring and searching for the fault;
  • store of the user's settings.

Produced by JSC «Saratovski radiopribornyi zavod»
